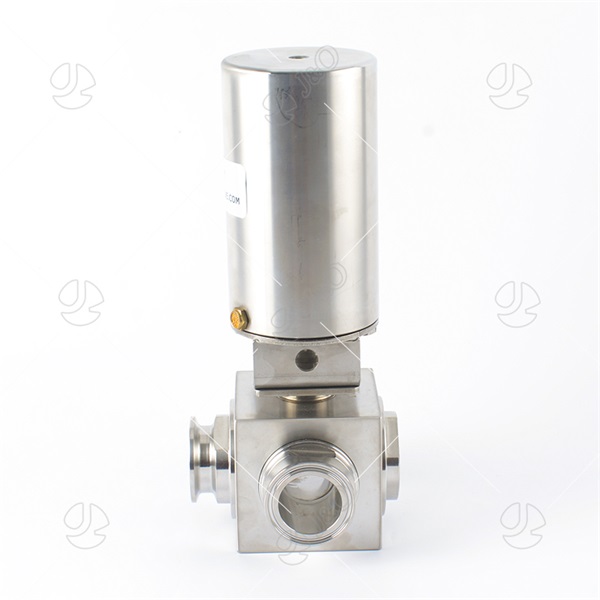

Sanitary Stainless Steel Pneumatic 3 Way Ball Valve

Material:
SS304/SS316L
Size:
1”-4”, DN25-DN100
Type:
Pneuamtic
Pressure:
10bar
Connection:
Clamped

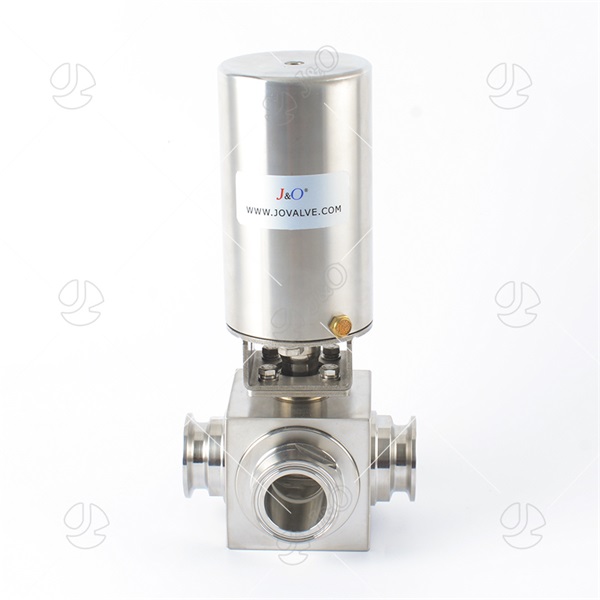

Sanitary Stainless Steel Square Tri Clamp Ball Valve

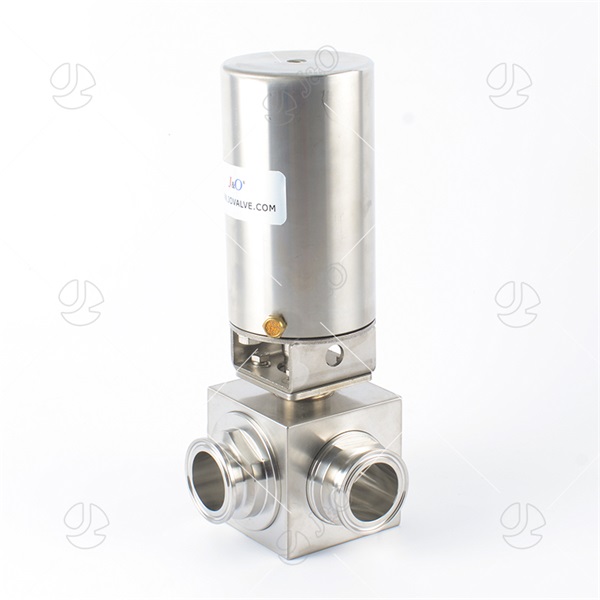

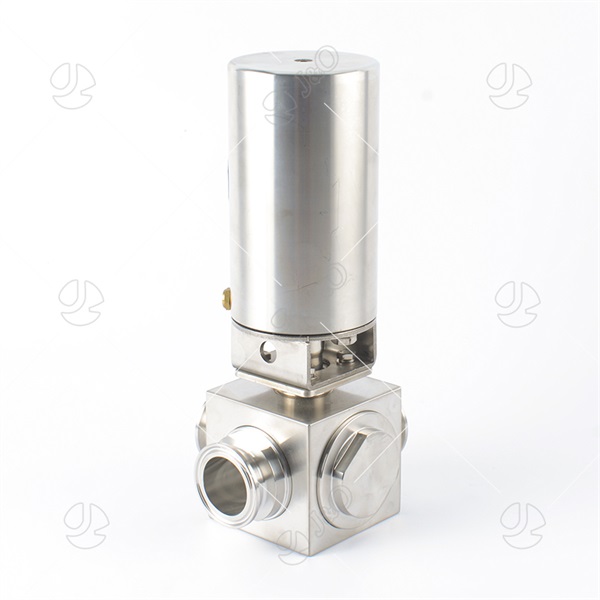

Sanitary Stainless Steel Square Tri Clamp Ball Valve Sanitary Stainless Steel Pneumatic Square Clamped Ball Valve Sanitary Stainless Steel Square Pneumatic Clamped Ball Valve Sanitary Stainless Steel Square Tri Clamp Ball Valve With SS Actuator

Sanitary Stainless Steel Pneumatic 3 Way Ball Valve

  • Our Pneumatic 3 Ways Ball Valve including Pneumatic Sanitary T Port Ball Valve, Hygienic Pneumatic L Port Ball Valve, Pneumatic Sanitary Cavity Filled Three Ways Ball Valve, Sanitary Butt-weld 3 Way Ball Valve, Hygienic Male Thread Three Ways Pneumatic Ball Valve, Hygienic Tri-Clamp 3 Ways Ball Valve.
  • L-Port or T-Port can be interchangeable. Valve body can be replaced in any connections, and the length will not change.

Product Description

Product Name: Sanitary Stainless Steel Pneumatic Three Way Ball Valve
Valve Body Material: SS304/SS316L
Seal Material: PTFE
Mex working pressure: 10Bar
Max. Working Temperature: 110 degree C
Availably size: 1"-4", DN25-DN100
Availably connection: Clamp, weld
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Actuator: Spring return or double acting
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
